Solcelle batteri

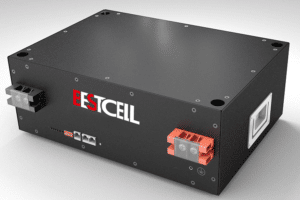

Bestcell 48V 200Ah LiFePO4 Battery Pack
(Rack-mount)
Battery Configuration: 1P16S
Nominal Voltage: 51.2V
Capacity: 200Ah
Norminal Power: 10.25kwh
Max. discharging current: 200A
Max. charging current: 200A
Size: 860x638x180mm
Weight: 103 kg
Cycle Life: 6000 cycles
Communication: CAN or RS485
IP rate: IP 65
7 års garanti
Pris 31000.-Kr
Bestcell 48V 100Ah LiFePO4 Battery Pack
(Wall-mount)
Battery Configuration: 1P16S
Nominal Voltage: 51.2V
Capacity: 100Ah
Norminal Power: 5.12kwh
Max. discharging current: 100A
Max. charging current: 100A
Size: 563x339x162mm
Weight: 48 kg
Cycle Life: 6000 cycles
Communication: CAN or RS485
IP rate: IP 65
7 års garanti
Pris 18500.- Kr
Bestcell 48V 100Ah LiFePO4 Battery Pack
(Wall-mount)
Battery Configuration: 5P16S
Nominal Voltage: 51.2V
Capacity: 100Ah
Norminal Power: 10.25kwh
Max. discharging current: 100A
Max. charging current: 100A
Size: 513x448x176.5m
Weight: 50 kg
Cycle Life: 6000 cycles
Communication: CAN or RS485
IP rate: IP 20
7 års garanti
Pris 18500.-Kr

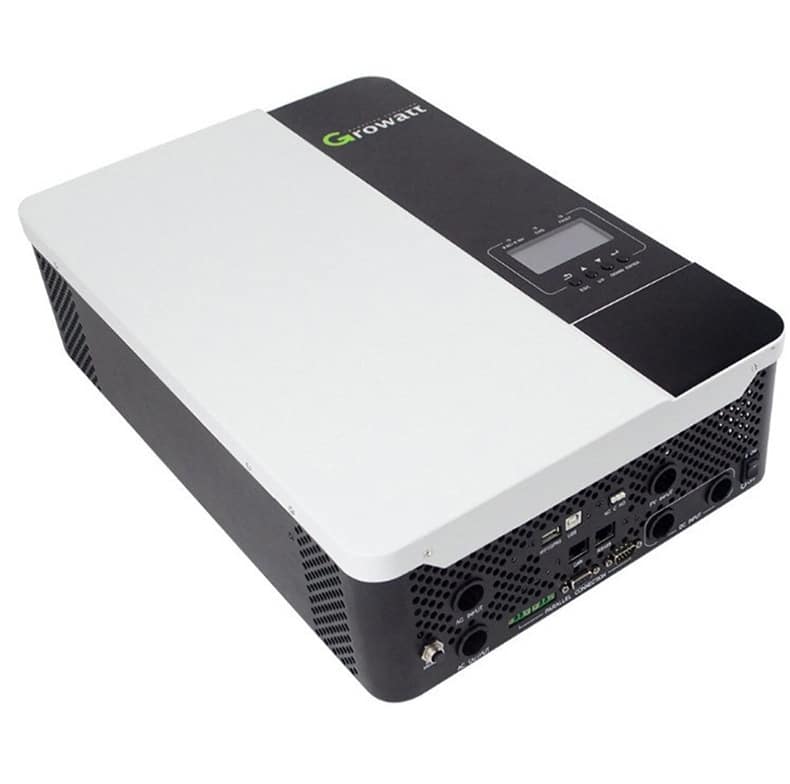

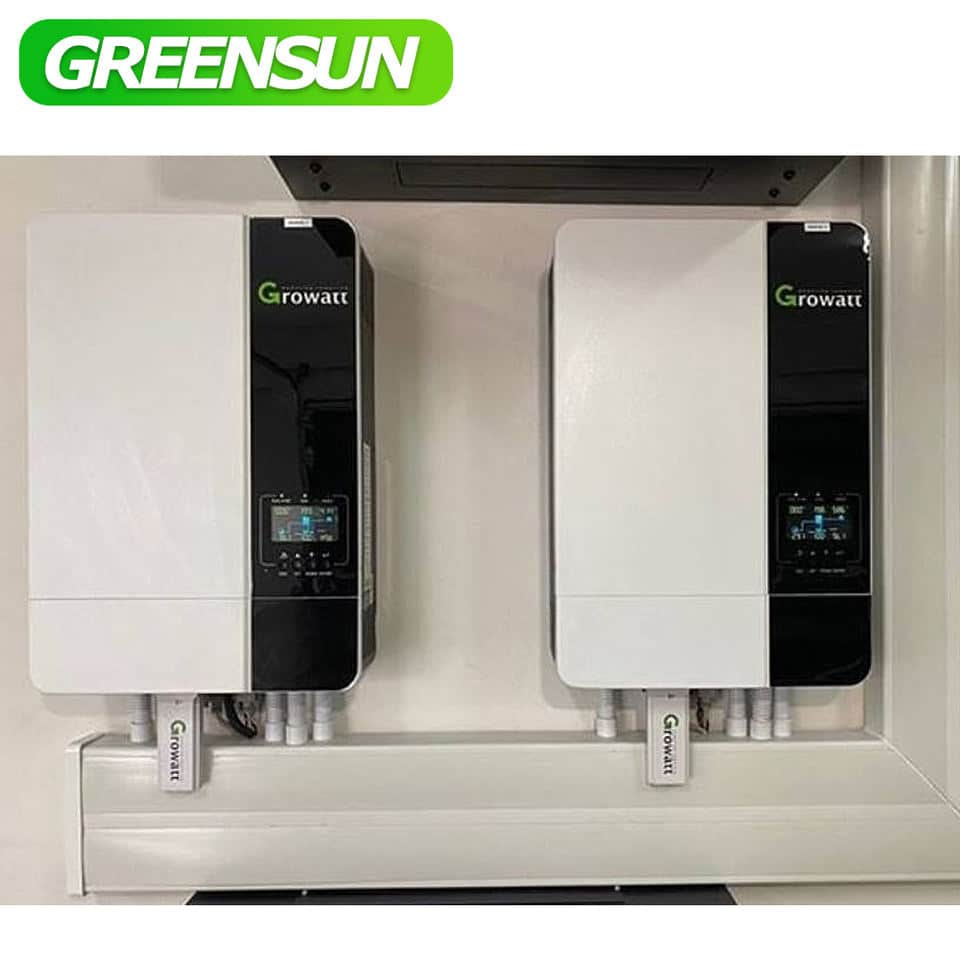

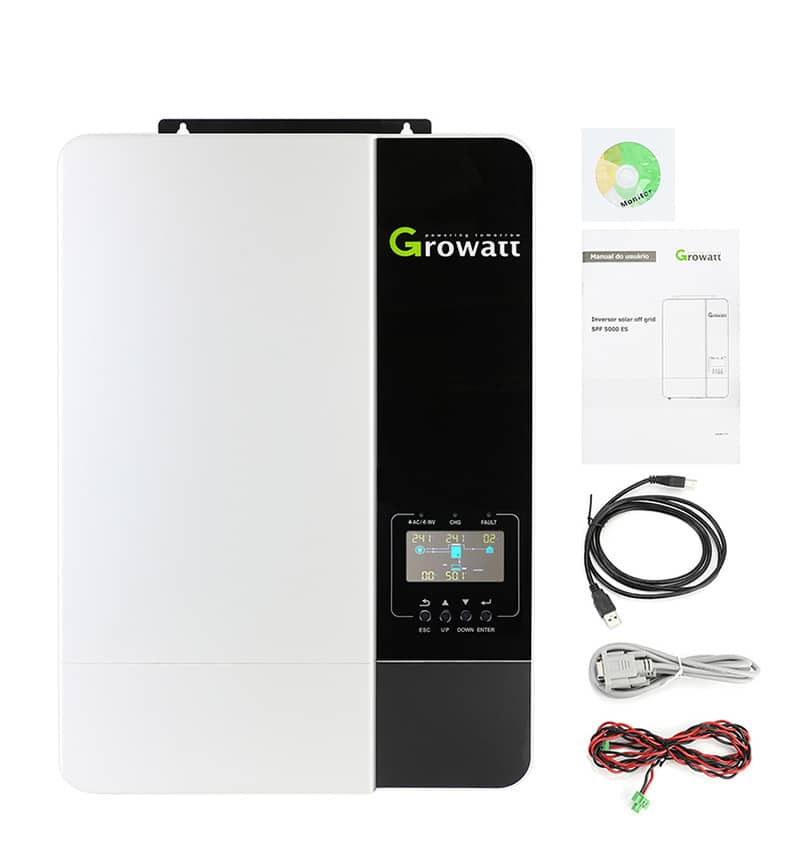

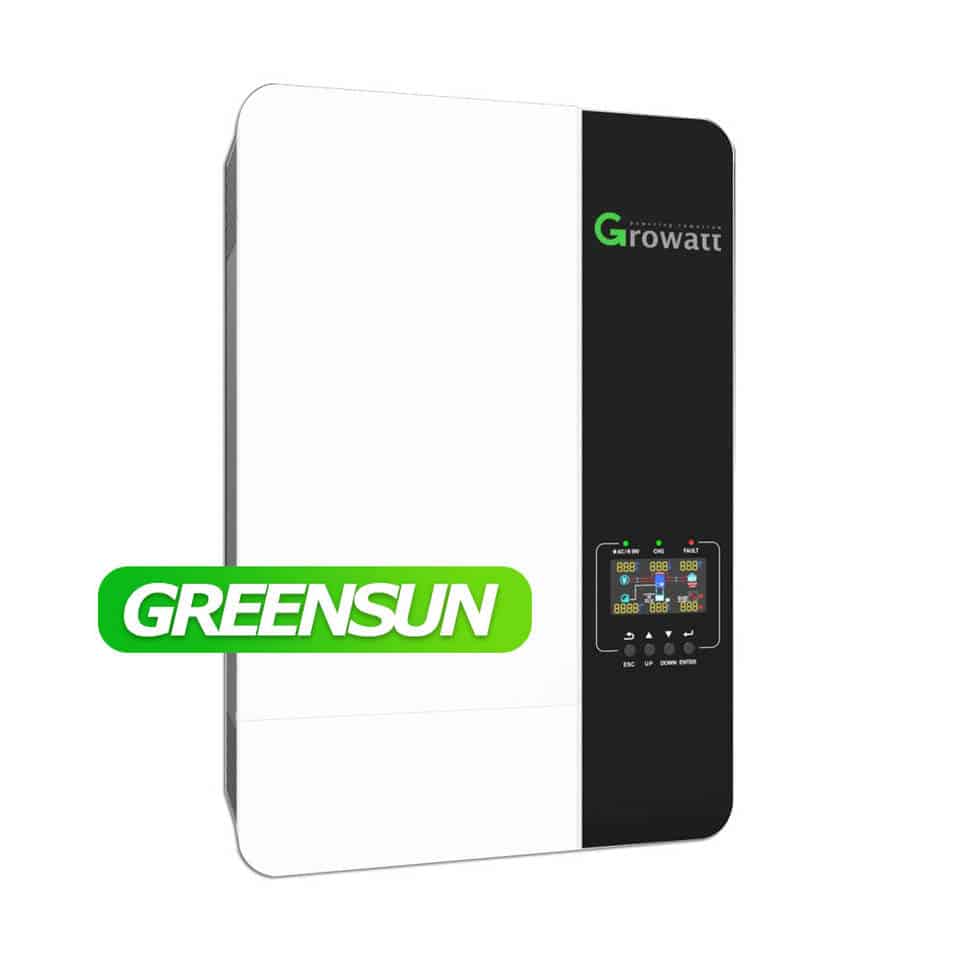

Inverter
- Integrated MPPT charge controller.
- Equalization charging function.
- Work with battery or without battery.
- Maximum PV input voltage up to 450VDC.
- Configurable grid or solar input priority.
- Optional WIFI/ GPRS remote monitoring.
- Support parallel operation for capacity expansion up to 30kW.
- PV and Grid power the load jointly if PV energy unsufficient.
- Flexibly schedule the Inverter charging and discharging time.
